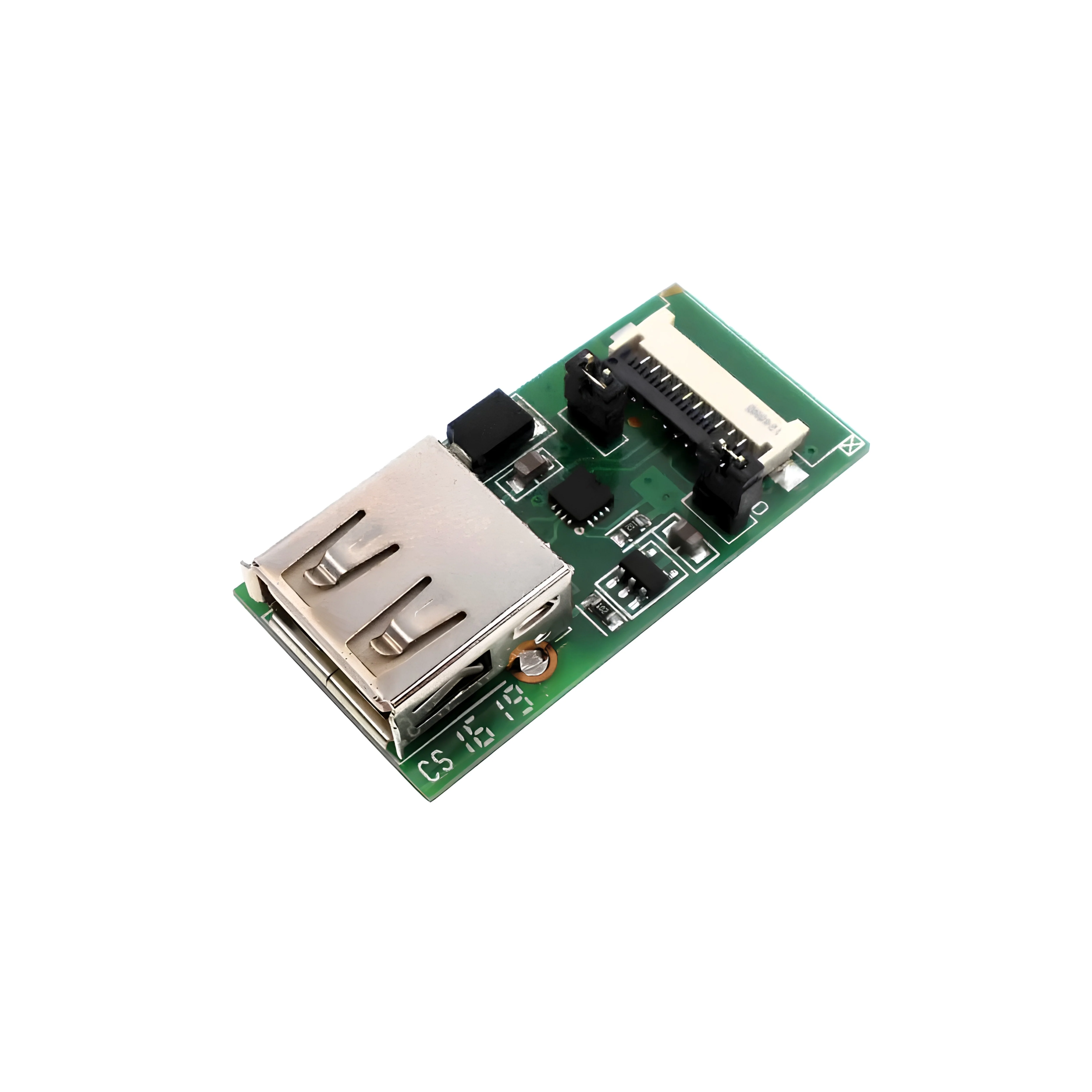

USB to FCC 10Pin 1.0mm Adapter Board HDL662B LCM LCD Module Debugging Interface

The HDL662B USB to FCC 10Pin Adapter Board is a compact debugging and communication interface designed for DWIN smart LCD, TFT, and LCM display modules. It allows direct communication between a PC and compatible LCD modules through a USB interface and a 10-pin 1.0mm pitch FFC/FCC connector. The board is widely used for firmware downloading, debugging, testing, and serial communication with DWIN display systems.

Technical Specification:

• Module Type: LCD/LCM Debugging Interface Adapter
• Interface Input: USB Type-A
• Interface Output: 10-Pin FFC/FCC Connector
• Connector Pitch: 1.0mm
• Communication Protocol: UART / Serial Communication
• Operating Voltage: 5V DC
• Power Supply: USB Powered

Features:

• USB to 10-pin 1.0mm FFC/FCC interface conversion
• Designed for DWIN smart LCD and TFT display debugging
• Plug-and-play operation through USB connection
• No external power supply required
• Compact and lightweight PCB design
• Supports serial communication and firmware downloading
• Suitable for development, testing, and maintenance applications
• Compatible with DWIN LCM LCD modules and related displays

Applications:

• DWIN LCD module debugging
• Firmware and GUI uploading
• Industrial HMI display development
• Smart TFT display testing
• Embedded display communication
• LCD firmware maintenance
• Prototype development and diagnostics
