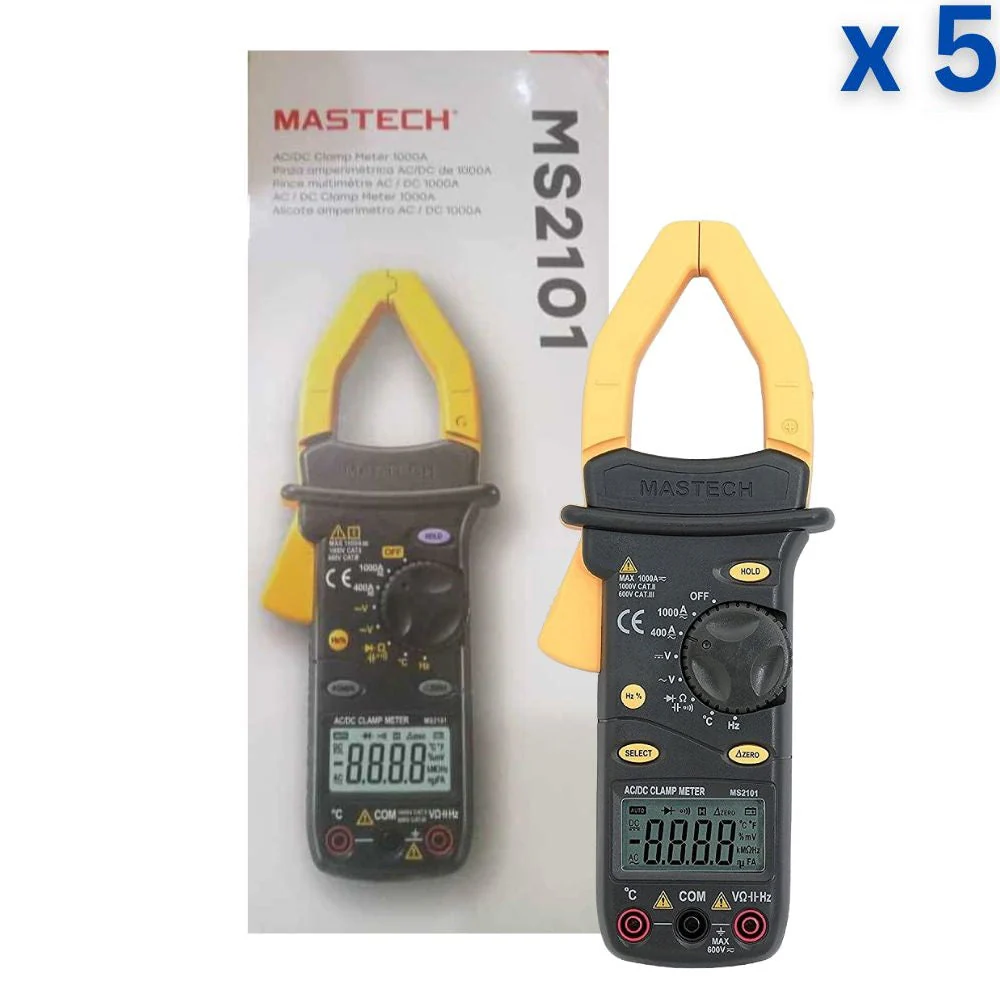

Mastech MS2101 Digital AC/DC Clamp Meter

The MS2101 Digital AC/DC Clamp Meters are designed for measuring AC/DC current and voltage, resistance, capacitance, frequency, temperature and duty cycle, tests continuity and diodes.

Technical Specification:

• Model No : MS2101
• Type of Product : Digital AC Clamp Meter
• Display : 3½ Digits LCD Display
• Display Counts : 3999
• Jaw Opening Size : 42 mm
• Voltage Range (DC) : 4 - 1000 V
• Voltage Accuracy (DC) : ±(0.7 % + 1 Digits)
• Current Range (AC) : 400-1000 A
• Current Accuracy (AC) : ±(3.0 % + 3 Digits)
• Voltage Range (AC) : 4V-700 V
• Voltage Accuracy (AC) : ±(0.8 % + 5 Digits)
• Resistance Accuracy : ±(1.2 % + 1 Digits)
• Power : 9 V 6F22 Battery
• Operating Environment : 5° to 35°C
• Storage Environment : -10° to 50°C
• Weight : 480 g
• Dimensions : 250x99x43 mm

 Features:

• Data hold and display back light
• Over range protection for all ranges
• Maximum & minimum value measuring function
• Auto and Manual ranging
• Auto Power Off
• Continuity Buzzer <50±20?

Pin Description:

Applications:

• Electrical Maintenance
• Automotive

Package Includes:

• Test Leads
• Battery
• Operating Manual
• Mastech MS2101 (Original) Digital AC/DC Clamp Meter
• K type thermocouple
