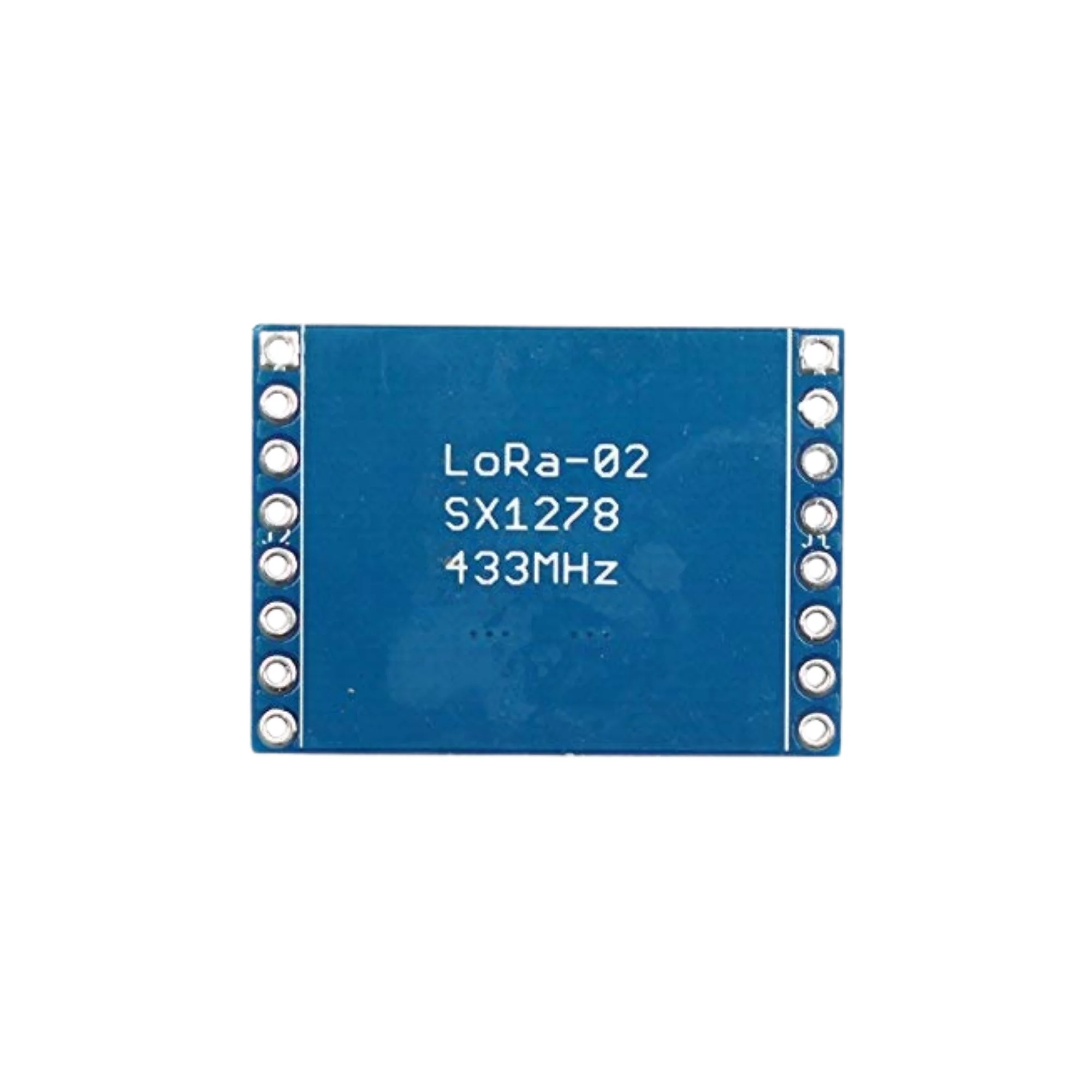

SX1278 RA02 LoRa Module

The SX1278 RA-02 LoRa Module is a long-range wireless communication module based on the Semtech SX1278 transceiver chip and developed by Ai-Thinker. Operating primarily on the 433 MHz frequency band, the module uses LoRa spread spectrum technology to provide reliable, low-power, long-distance wireless communication for IoT and remote monitoring applications. It supports multiple modulation modes including LoRa, FSK, GFSK, and OOK, making it suitable for industrial automation, smart agriculture, wireless sensor networks, home automation, telemetry, and remote data transmission systems. The module communicates through an SPI interface and requires a 3.3V power supply.

Technical Specifications:

• Frequency Range: 410 MHz – 525 MHz (433 MHz typical)
• Operating Voltage: 2.7V – 3.7V DC
• Maximum RF Output Power: Up to +20 dBm
• Receiver Sensitivity: Up to -148 dBm
• Communication Interface: SPI Interface

Features:

• Supports long-range LoRa wireless communication
• Low power consumption for battery-operated devices
• High anti-interference capability
• Supports LoRa, FSK, GFSK, and OOK modulation
• Compact design with external antenna support

Applications:

• IoT and smart monitoring systems
• Wireless sensor networks
• Smart agriculture automation
• Remote telemetry and data logging
• Industrial wireless communication systems
