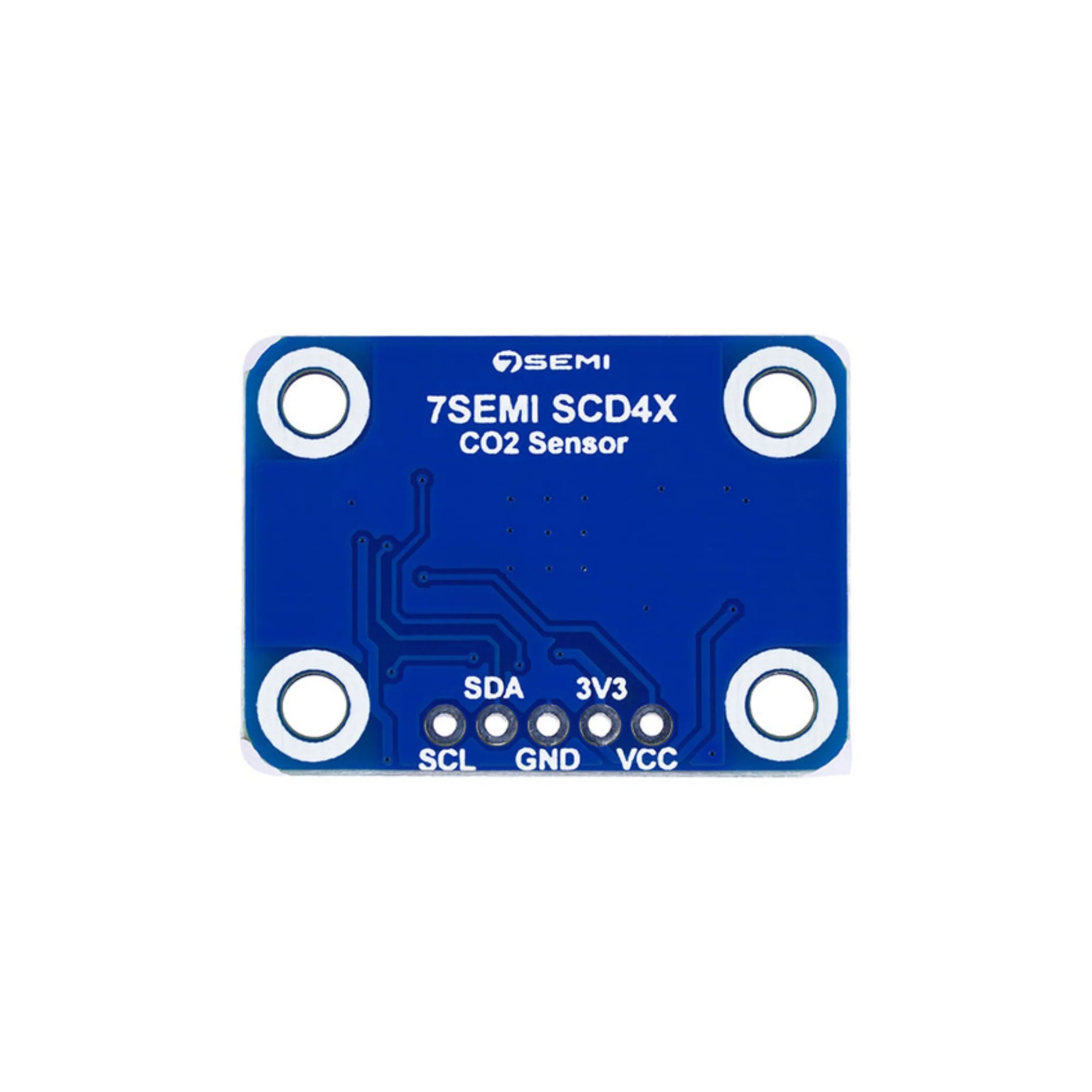

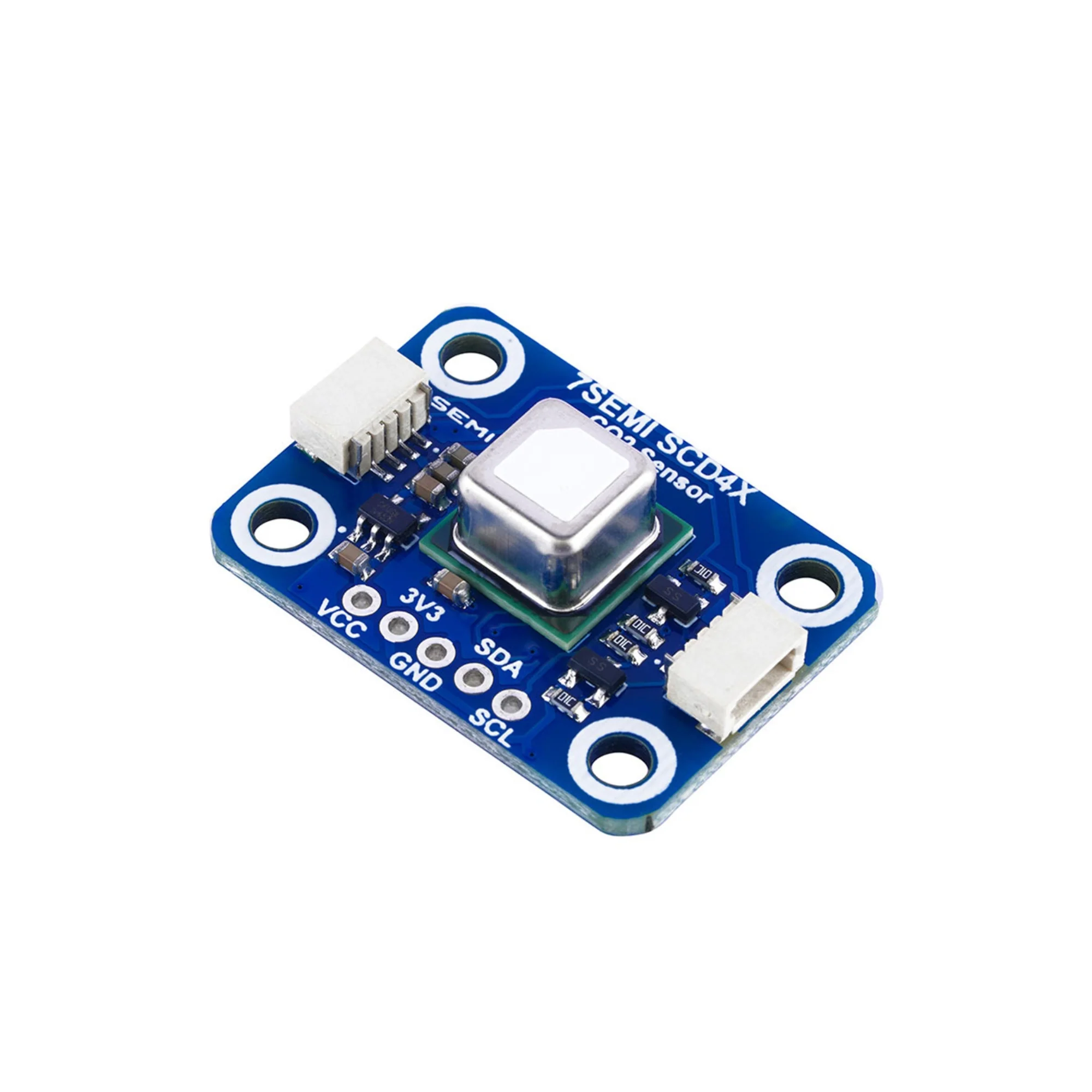

7Semi SCD41 High Accuracy CO2, Temperature and Humidity Sensor Breakout I2C

The 7Semi SCD41 High Accuracy CO₂, Temperature and Humidity Sensor Breakout is a compact, high-precision sensing module designed for advanced indoor air-quality monitoring. It integrates a photoacoustic NDIR CO₂ sensor with built-in temperature and humidity measurement and communicates through I²C, making it suitable for smart-home automation, HVAC systems, environmental sensing, and IoT applications needing highly reliable CO₂ data.

Technical Specifications:

• Target Gas: CO₂ (carbon dioxide)

• CO₂ Measurement Range: 400 to 5,000 ppm

• CO₂ Accuracy: ±(40 ppm + 5% of reading) typical

• Temperature Accuracy: ±0.8 °C typical

• Humidity Accuracy: ±6% RH typical

• CO₂ Response Time: ~60 seconds (τ63%)

• Supply Voltage: 2.4 V to 5.5 V

• Interface: I²C digital communication

• Operating Temperature: –10 °C to +60 °C

• Sensor Size: Approximately 10.1 × 10.1 × 6.5 mm

• Typical Current Consumption: Designed for low-power embedded systems

Features:

• High-accuracy photoacoustic NDIR CO₂ sensing technology

• Integrated temperature and humidity measurement

• Factory calibrated for ready-to-deploy performance

• Easy to integrate using the I²C digital interface

• Compact breakout format suitable for prototyping and product development

• Ideal for high-precision indoor air-quality monitoring applications

Applications:

• Indoor air-quality monitoring and control systems
• Smart HVAC and ventilation automation

• IoT sensing nodes and environmental telemetry

• Portable and embedded CO₂ monitoring instruments

• Research, laboratory, and educational systems

• Air-purifier and filtration system performance tracking
